Components for Earth Rods

Earth rods for installing single earth electrodes for lightning protection systems and plants including connecting clamps.

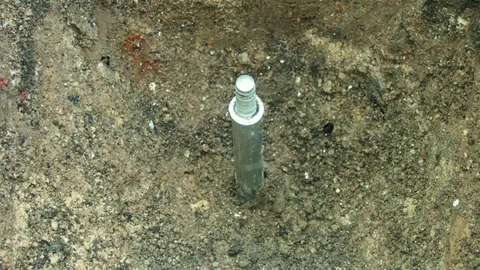

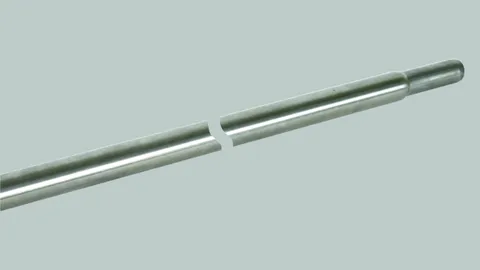

Earth Rods

For setting up earthing systems for down conductors or transformer stations.Features:
  • No thickening of the cross-section at the coupling joint
  • Self-locking coupling
  • Corrosion resistance
  • Easier storage and transport
  • Universal use according to local soil conditions
  • Constant resistance values
  • Easily driven in with a vibration hammer

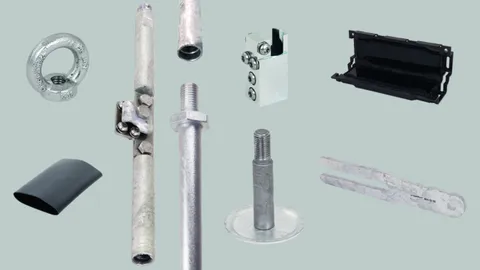

Screwable earth rod

Complete system for the installation of drilled earthing systems up to 99 m by means of core drilling; e.g. in pipeline applications or also for rocky ground.

Tubular Earth Rods

Light design, for implementing earth-termination systems for down conductors.

Driving Spikes

For driving in the first earth rod.
The driving spikes can be used for earth rods made of steel and StSt as well as tubular earth rods.

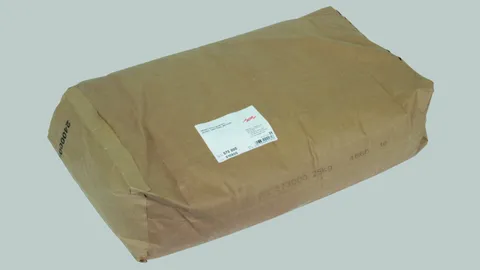

DEHNIT Earthing Method

For improving and stabilising the earth electrode resistance.

Highly swellable, powdery and extremely moisture retaining special clay provides a conductive earth electrode enclosure and reduces the soil resistivity.

More information at www.dehn-international.com/.

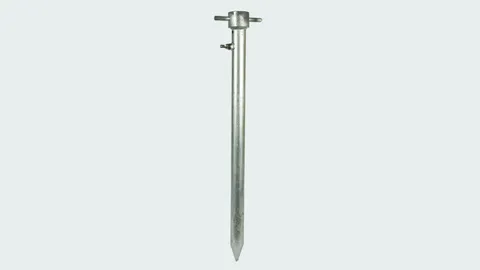

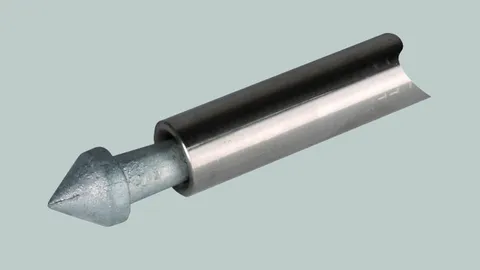

Earthing Pipe with Driving Spike

With driving spike for earthing mobile objects such as vehicles, power generators, etc.

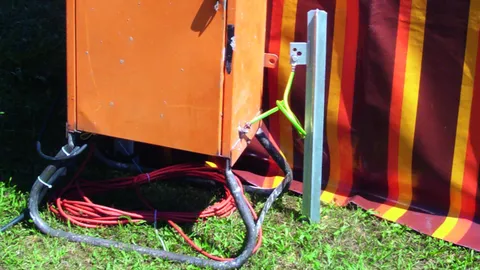

Profiled Earth Rods

For the installation of earth-termination systems e.g. for antennas or construction site distribution cabinets.

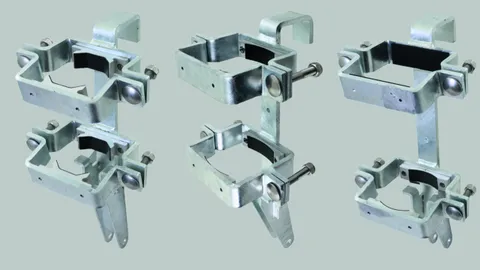

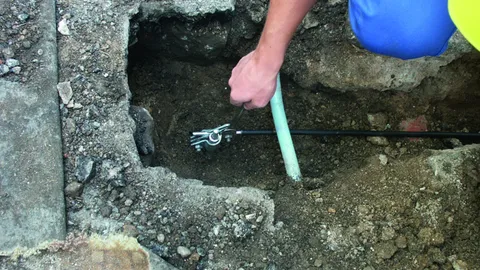

Single-screw Connection Clamps

For connecting round conductors, flat strips or cables to earth rods.
For cross and parallel connection.

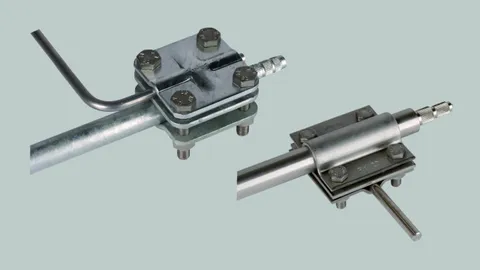

Connection Clamps

For cross and parallel connection of round conductors, flat strips or cables to earth rods.

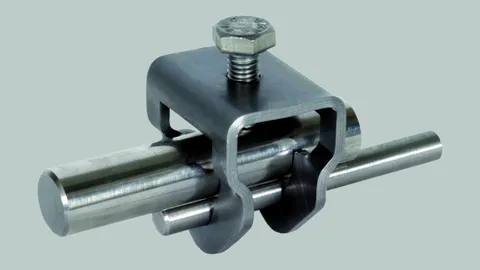

Connection Brackets

For connecting round conductors, cables and flat strips to earth rods.

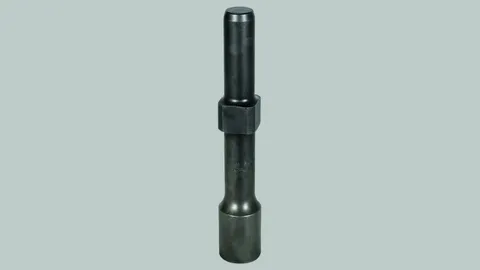

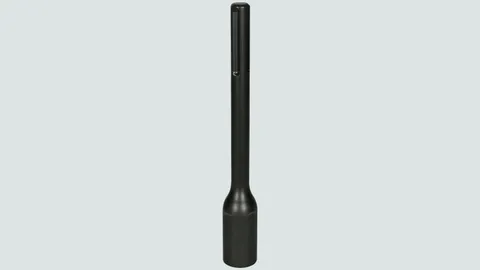

Hammer Inserts for Earth Rods

For driving in earth rods with a vibration hammer.
For earth rods type S and Z.
Ø20 mm (pin Ø12 mm Part No. 620...) or
Ø25 mm (pin Ø15 mm Part No. 625...)

With the Atlas Copco equipment different adapter types can be used. Please note that when placing your order.

Hammer Inserts for Tubular Earth Rods

For driving in tubular earth rods with a vibration hammer.

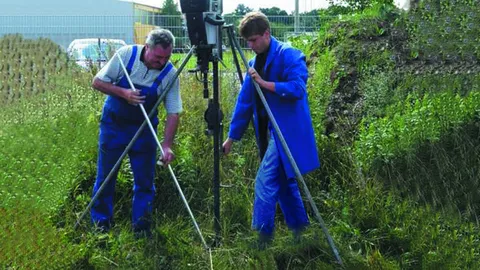

Hammer Rig

For driving earth rods of 1000 mm or 1500 mm in length into the ground using a vibration hammer.

The hammer rig is delivered with a hammer slide guide.

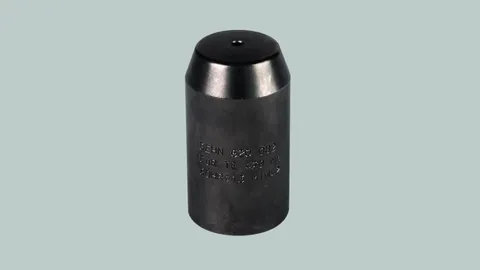

Driving Heads

For driving in earth rods with a mallet.

Hammer Support

For vibration hammers of the following brands

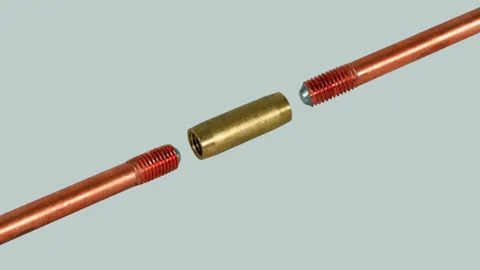

Fittings for Copperbond Earth Rods
